THE FLAGSHIP PHASE 4
Have queries on this Project?
THE FLAGSHIP PHASE 4 Overview
THE FLAGSHIP PHASE 4 Location
28.304064
77.245924

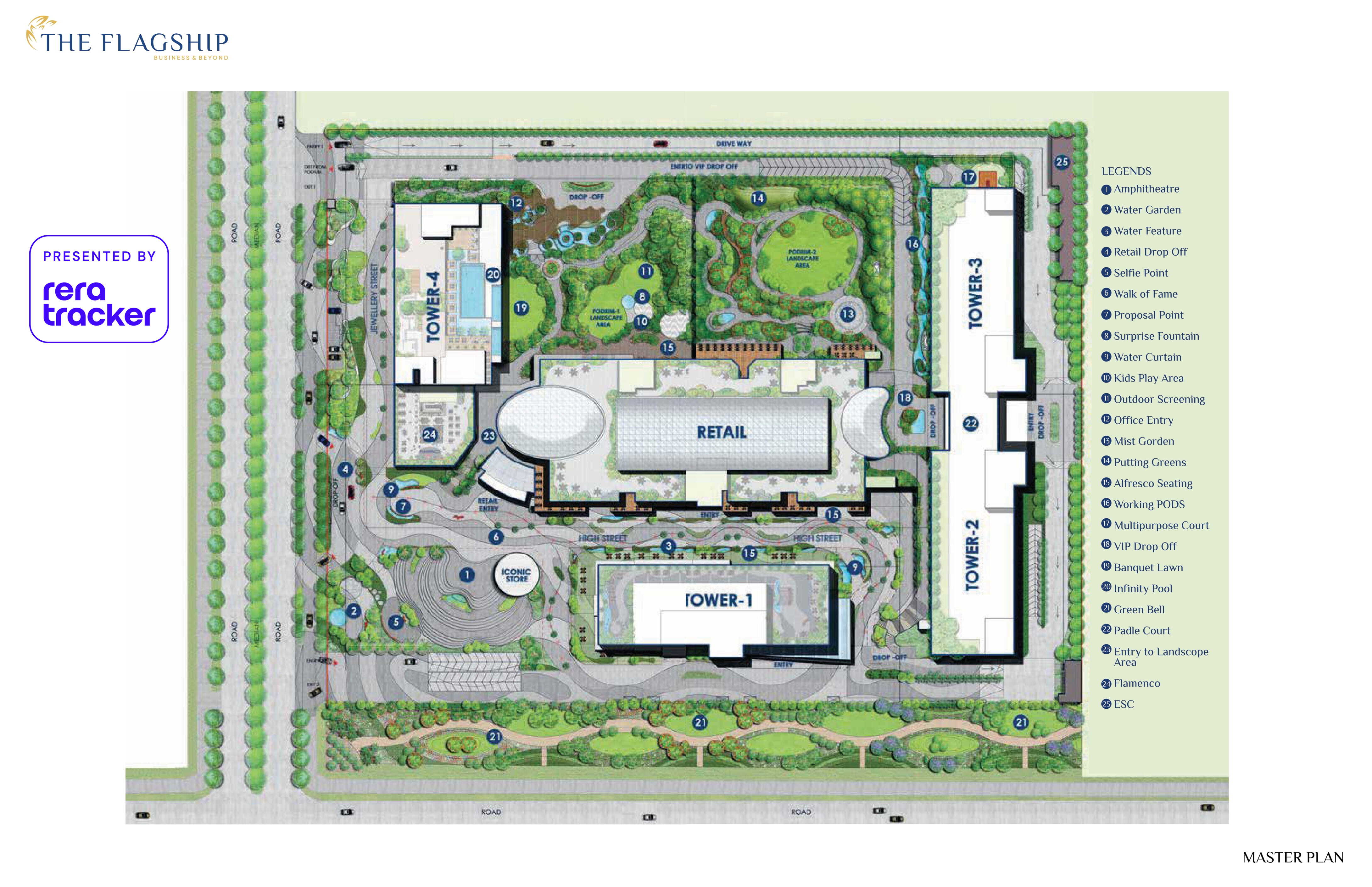

THE FLAGSHIP PHASE 4 Layout
THE FLAGSHIP PHASE 4 Brochures
THE FLAGSHIP PHASE 4 Walkthrough
THE FLAGSHIP PHASE 4 Land Details
Showing 1 blocks with 226 units
Property Summary
Total Carpet Area
13884.52 m²
149451.58 ft²
Total Units
229
2 different types
Blocks & Floors
1
5 floors across all blocks
Parking
0
0 garages, 0 open
Block Retail
226 unitsTHE FLAGSHIP PHASE 4 Documents
THE FLAGSHIP PHASE 4 Permits
THE FLAGSHIP PHASE 4 Basic Details
THE FLAGSHIP PHASE 4 Bank Details
THE FLAGSHIP PHASE 4 Khasra Details
Total Area
45202.50 m²
486555.19 ft²
THE FLAGSHIP PHASE 4 Project Team
THE FLAGSHIP PHASE 4 Development Works
Demarcation of Plots
The Plot No.01B, Sector-140A has been demarcated by NOIDA Development Authority.
Boundary Wall
A Boundary wall of RCC/Brick Work of thickness 115mm/230mm/150mm and ht of 900/1500/1800mm with plaster and railing will be prepared, it will be as per design.
Road Work
Access driveway to all the towers will be provided and that drive way of pavers M 30 Grade with thickness of 65mm and 100mm kerb stone on sides if required. At entry of tower there will be pattern as per landscape design.
Footpaths
Footpath will be provided using 40-50mm paver wherever required.
Water Supply Including Drinking Water Facilities
NOIDA Authority shall supply water for the entire project and it shall be collected in under ground water tanks of 178KLX1, 184KLX1, 184KLX1 nos. raw water and 178KLX1,167KLX1 nos. domestic water tanks and water with 656mm dia pipes to overhead tanks at respective tower.
Sewer System
STP of 700 KLD will be constructed using RCC and required pump room, STP treated water will be used in flushing, cooling towers and gardening.
Drain
Storm water drainage system will be constructed using 400mm dia pipes as per drawing.
Parks
Landscape with civil work masonary 115/250mm and stone, pavers, grass and various type of plantation shurbs.
Tree Planting
Tree plantation will be as per sanctioned plan in which 50 percent trees will be evergreen trees.
Design For Electric Supply Including Street Lighting
incoming HT Electrical supply will be provided by UPPCL/NPCL via 2 Nos. 7.5 MVA Power transformers ,substations, LT Panel and DG Sets of Nos X 1010 KVA as planned as per norms. street lighting will be done using LT supply and power backup as per requirement.
Community Buildings
Not Applicable in case of commercial project.
Treatment and Disposal System of Sewage and Sullage water
STP will be installed as per drawings. All sewerage will be treated waste water shall be used for landscaping green, cooling towers and flushing system.
Solid Waste Management And Disposal System
STP is proposed at site for the required capacity and treated water shall be used for flushing and irrigation as per latest green building practices.
Water Conservation System
Rain water harvesting system with separate rain water storage tanks is being provided to conserve rain water and duel flush, low flow fixture and drip/sprinklers in green areas will also be provided.
Energy Management System Including Use of Renewable Energy
Solar system shall be provided as per requirement.
Fire Protection And Fire Safety System
In compliance to national building codes of India 2016 part IV requirement, fire protection and safety system to be provided shall be consist of a. Under ground fire tank-930m3. b. Each tower having 20m3 fire overhead water tank. c. main electric fire hydrant and sprinkler pumps provided of 2850 LPM each. d. Jockey pump for hydrant and sprinkler of 180LPM each. e. Diesel Engine fire pump of 2850 LPM. f. Water Curtain pump of 4500mm. g. All Sprinkler system provided in compliance to IS Codes and project fire safety requirements aligned to NBC 2016 part IV.
Social Infrastructure And Other Public Amenities Including Public Health Services
creche facility, public toilets and drive toilets.
Emergency Evacuation Services
Emergency evacuation system (stair ways, exit ways etc.) planned in compliance to national building codes of India 2016 part IV. refuse areas also to be provided in compliance to NBC 2016.
Other Miscellaneous Work
State of the art security system access control system and CCTV system to be provided for security and controlled access in the building.
THE FLAGSHIP PHASE 4 Other Details
Developed by
CRC Group
Verified8 Projects
EXECUTIVE SUMMARY CRC Group, formally operating as Chandgi Ram Real Estate (CRC), is a privately held real estate developer headquartered at Logix Techno Park, Sector 127, Noida. The group traces its origins to 2006 when…
Know More about CRC Group
