The Flagship Phase 1
Overview
Launch Date
Completion Date
RERA ID
Basic Details
Location
28.303797
77.245761

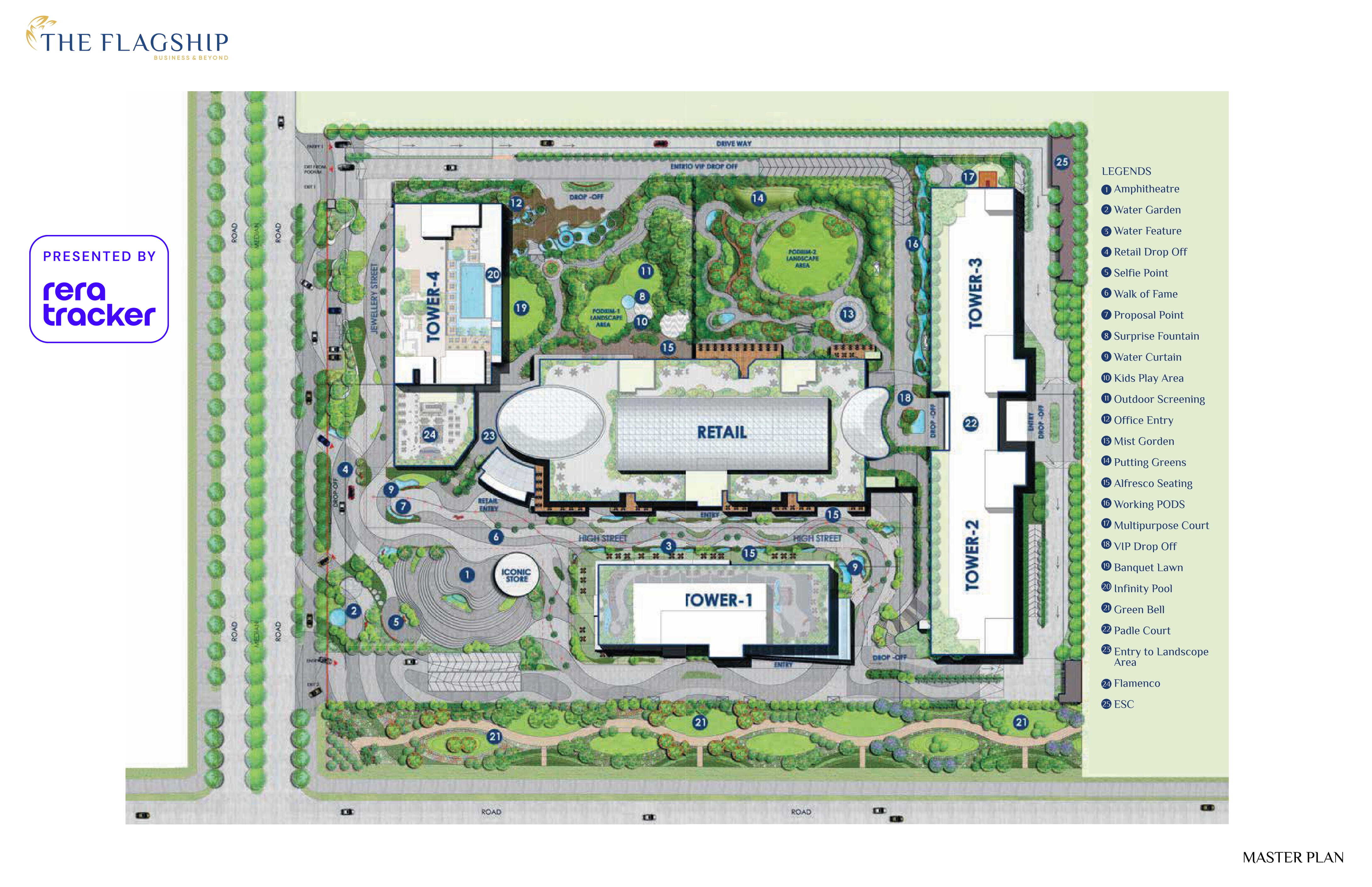

Layout
Brochures
Walkthrough
Bank Details
Development Works
Demarcation of Plots
The Plot No. 01B, Sector 140A, NOIDA had been demarcated by Noida Development Authority
Boundary Wall
A boundary wall of RCC / Brick work of thickness 115 mm/ 230/150 mm and ht of 900 /1500/1800 mm with plaster and railing will be prepared, it will be as per design.
Road Work
Access driveway to all the towers will be provided and that drive way of Pavers M 30 grade with thickness of 65 mm and 100 mm kerb stone on sides if required. At entry of tower there will be pattern as per landscape design.
Footpaths
Footpath will be provided using 40-50 mm Paver wherever required.
Water Supply Including Drinking Water Facilities
NOIDA Authority shall supply water for the entire society and it shall be collected in underground water tanks of 178 KL X1, 184 KL X 1 nos. Raw water and 178KL X 1 , 167 KL X1, Nos. Domestic Water Tanks and water with 65 mm dia pipes to overhead tank at respective Towers.
Sewer System
STP of 700 KLD will be constructed using RCC and required pump room, STP treated water will be used in flushing , cooling Towers and gardening.
Drain
Storm Water drainage system will be constructed using 400mm dia pipes as per drawings.
Parks
Landscape with civil work masonary 115/230 mm and stone , pavers , grass, and various type of plantation shurbs
Tree Planting
Tree Plantation will be as per sanctioned plan in which 50 percent trees will be evergreen trees.
Design For Electric Supply Including Street Lighting
Incoming HT electrical supply will be provided by UPPCL / NPCL Via 2 Nos. 7.5 MVA Power Transformers, Substation , LT Panel and DG Sets of 5 Nos X2000 kVA and 1 No X 1010 kVA are planned as per norms. Street lighting will be done using LT supply and Power Back up as per requirement.
Community Buildings
Not Applicable
Treatment and Disposal System of Sewage and Sullage water
STP will be installed as per dwg , All sewerage will be treated and the treated waste water will be used for landscaping green , cooling towers and flushing system.
Solid Waste Management And Disposal System
STP is proposed at site for the required capacity and treated water shall be used for flushing and irrigation as per latest green building practices.
Water Conservation System
Rain water harvesting system with separate Rain water Storage tanks is being provided to conserve rain water and duel flush , Low flow Fixture and Drip / sprinklers in Green areas will also be provided.
Energy Management System Including Use of Renewable Energy
Solar System shall be provided as per requirement.
Fire Protection And Fire Safety System
In compliance to National Building Code of India 2016 Part IV requirement, Fire Protection and Safety System provided which consists of Underground Fire Tank - 920 m3 Each Tower having 20 m3 Fire Overhead Water Tank Main Electric Fire Hydrant and Sprinkler Pumps provided of 2850 LPM each Jockey pump for Hydrant and Sprinkler of 180 LMP each Diesel Engine Fire Pump of 2850 LPM Water Curtain Pump of 4500 M All project Sprinkler system provided in compliances to IS codes and project fire safety requirements aligned to NBC 2016 Part-IV
Social Infrastructure And Other Public Amenities Including Public Health Services
Creche facility , Public toilets and driver toilets.
Emergency Evacuation Services
Emergency Evacuation System ( stairways, exitways etc.) planned in compliance to National Building Code of India 2016 Part -IV . Refuge areas also provided in compliance to NBC 2016
Other Miscellaneous Work
State of the Art Security System Access Control system and CCTV system provided for Security and controlled access in the buildings.
Documents
Allotment Letter issued by Competent Authority
No: Reply Letter for Objection of The Flagship Phase 1 Project Dated 06.02.2023 | Date: 06-02-2023
Proforma of Completion Certificate(Occupancy)
Other
Permits
Project Team
Land Details
Showing 1 blocks with 716 units
Property Summary
Total Carpet Area
27384.29 m²
294761.76 ft²
Total Units
716
2 different types
Blocks & Floors
1
24 floors across all blocks
Parking
0
0 garages, 0 open
Block Tower 1
716 unitsKhasra Details
Total Area
45202.50 m²
486555.19 ft²
