EKANAM
Overview
Launch Date
Completion Date
Configurations
Sizes
Project Size
Total Floors
Launch Price
Current Price
RERA ID
Basic Details
Location
28.3237
77.2224
Drone Shots

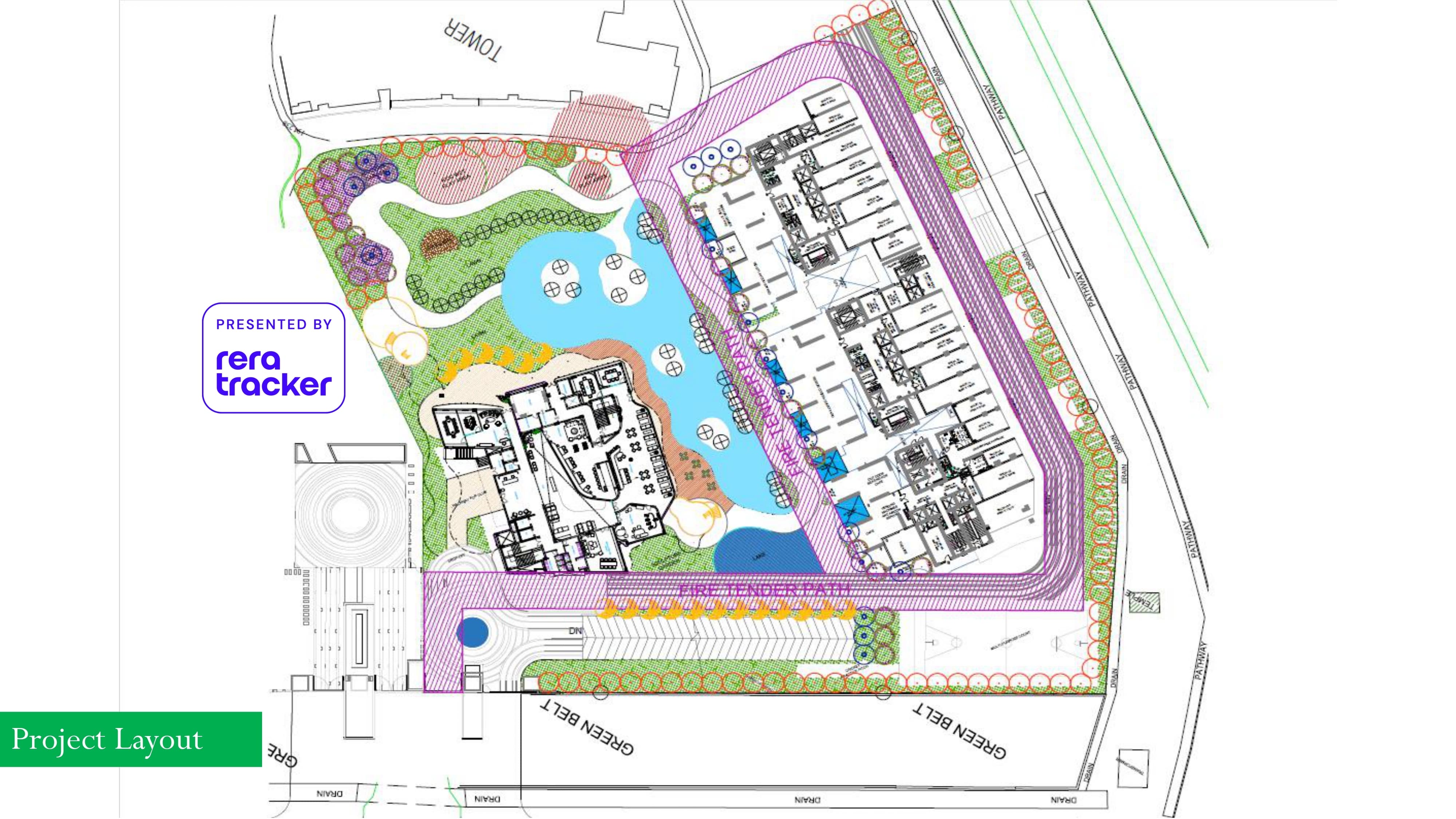

Layout
Payment Plans

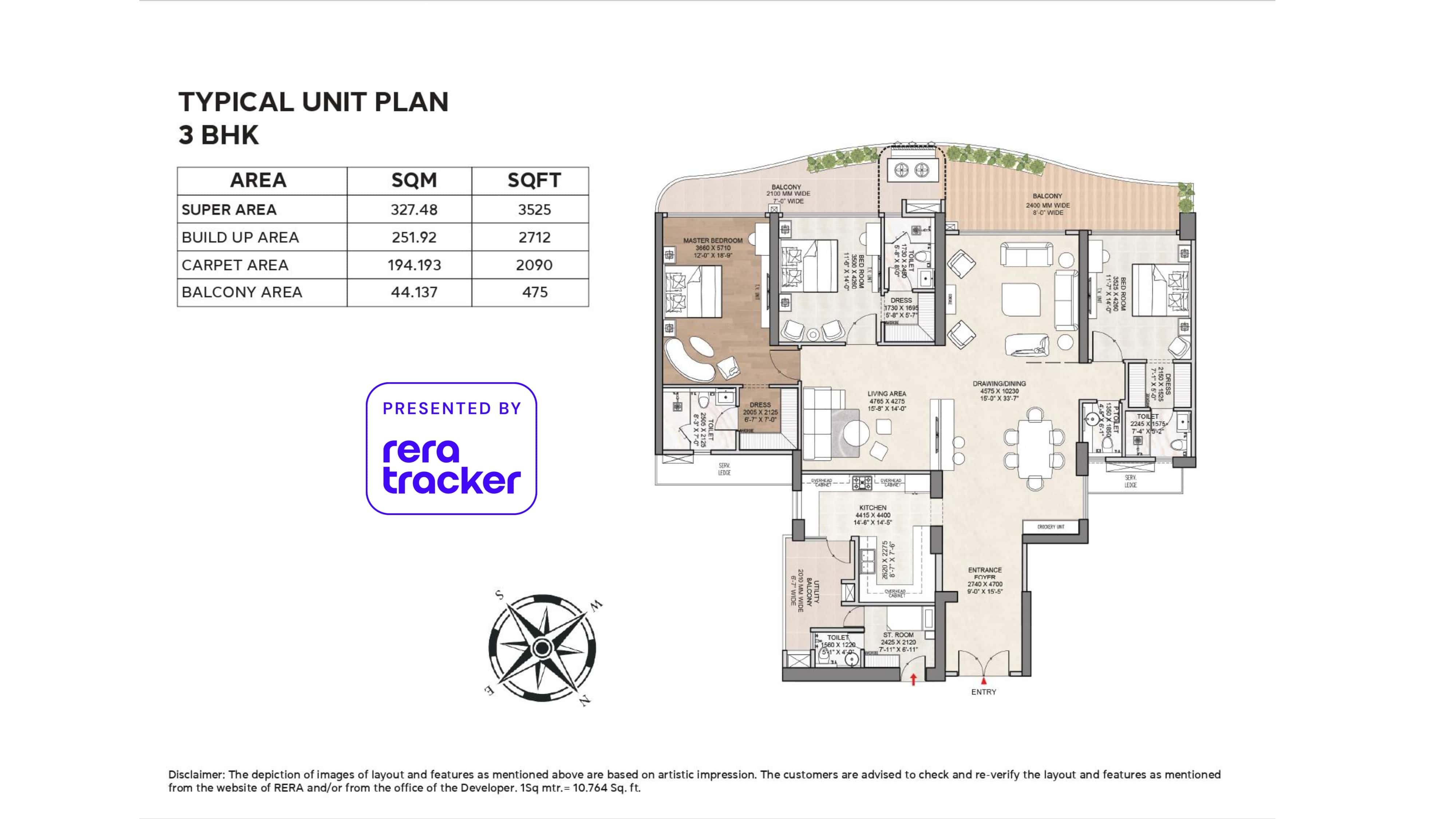

Floor Plan
Brochures
Walkthrough
Bank Details
Development Works
Demarcation of Plots
Plot No - GH-02,Sector-107,Noida, Uttar Pradesh
Boundary Wall
A 1.5 m high Boundary Wall along Road on both side with green fencing an other 2 sides.
Road Work
A Peripheral loop road connecting to all tower.
Footpaths
A Networks of Footpaths connects with various areas of the Landscape, including the Towers and Gardens
Water Supply Including Drinking Water Facilities
The NOIDA Authority will supply water to the entire society, which will then be treated and delivered to Customer Premises through piping and pumping /gravity system.
Sewer System
A centralized Sewage Treatment Plant (STP) will process the sewage, with each tower equipped with its own downcomers connected to the main sewage line.
Drain
The Drainage system will consist of a network of Pipe and Catch Basins leading to the nearest Strom Water Drain, which will be connected to Noida Authority s drainage system..
Parks
A Landscape Area has been provided for parks and other recreational activities.
Tree Planting
Trees and Plants of various species will be planted in accordance with the landscape design plan.
Design For Electric Supply Including Street Lighting
A single power feeder will be provided by the Noida Electricity Board and connected to the central substation. The entire project will also be equipped with street lighting.
Community Buildings
A Community Building will be constructed as per approved Building Plan, which will include multi-purpose halls.
Treatment and Disposal System of Sewage and Sullage water
A centralized Sewage Treatment Plant (STP) will cater to the entire project, with all towers connected to the system.
Solid Waste Management And Disposal System
The project features a waste segregation area along with an Organic Waste Converter (OWC) for processing organic waste.
Water Conservation System
A Dual flush system will be installed, along with an adequate number of rain water harvesting pits .
Energy Management System Including Use of Renewable Energy
LED lights along with a timer control panel will be installed to optimize energy efficiency and management.
Fire Protection And Fire Safety System
in Compliance to the National Building Code of India, 2016, part IV requirements, the fire protection and safety system includes ; -Underground Fire Tanks with a total capacity of 2 x 300 = 600 KLD - 200 KL fire overheads water tank for each towers. - Main electric fire Hydrant and Sprinkler Pumps provided of 2850 LPM each. -Jockey pump for Hydrant and Sprinkler systems, each with a capacity of 180 LPM each. -Diesel Engine Fire Pump with a capacity of 2850 LPM. -Water certain pump with a capacity of 4900 LPM. - Sprinkler system designed in compliance with IS codes and aligned with the projects fire safety requirements aligned to NBC 2016 Part -IV.
Social Infrastructure And Other Public Amenities Including Public Health Services
Social gathering spaces will be provided with in the community building.
Emergency Evacuation Services
Refuge area will be provided in each tower as per NBC 2016 in addition to the Main and Fire Staircase.
Other Miscellaneous Work
Other Miscellaneous Work A comprehensive security system will be implemented , including Security Guard, CCTV Cameras and controlled access.
Documents
Proforma of Completion Certificate(Occupancy)
General body resolution for AoA (if Authorized Entity is AoA)
Notarized Affidavit for completion of balance development work
Permits
Project Team
Land Details
Showing 3 blocks with 298 units
Property Summary
Total Carpet Area
68513.43 m²
737471.71 ft²
Total Units
324
5 different types
Blocks & Floors
3
47 floors across all blocks
Parking
0
0 garages, 0 open
Block Tower 1
125 unitsBlock Tower 2
89 unitsBlock Tower 3
84 unitsKhasra Details
Total Area
15116.35 m²
162710.88 ft²
