Irish Platinum
Have queries on this Project?
Irish Platinum Overview
Land Area
Project Size
Density
Unit Configurations
Size
Total Floors
RERA Received
RERA Completion
Launch Price
Current Price
RERA ID
Irish Platinum Location
28.572833
77.482602

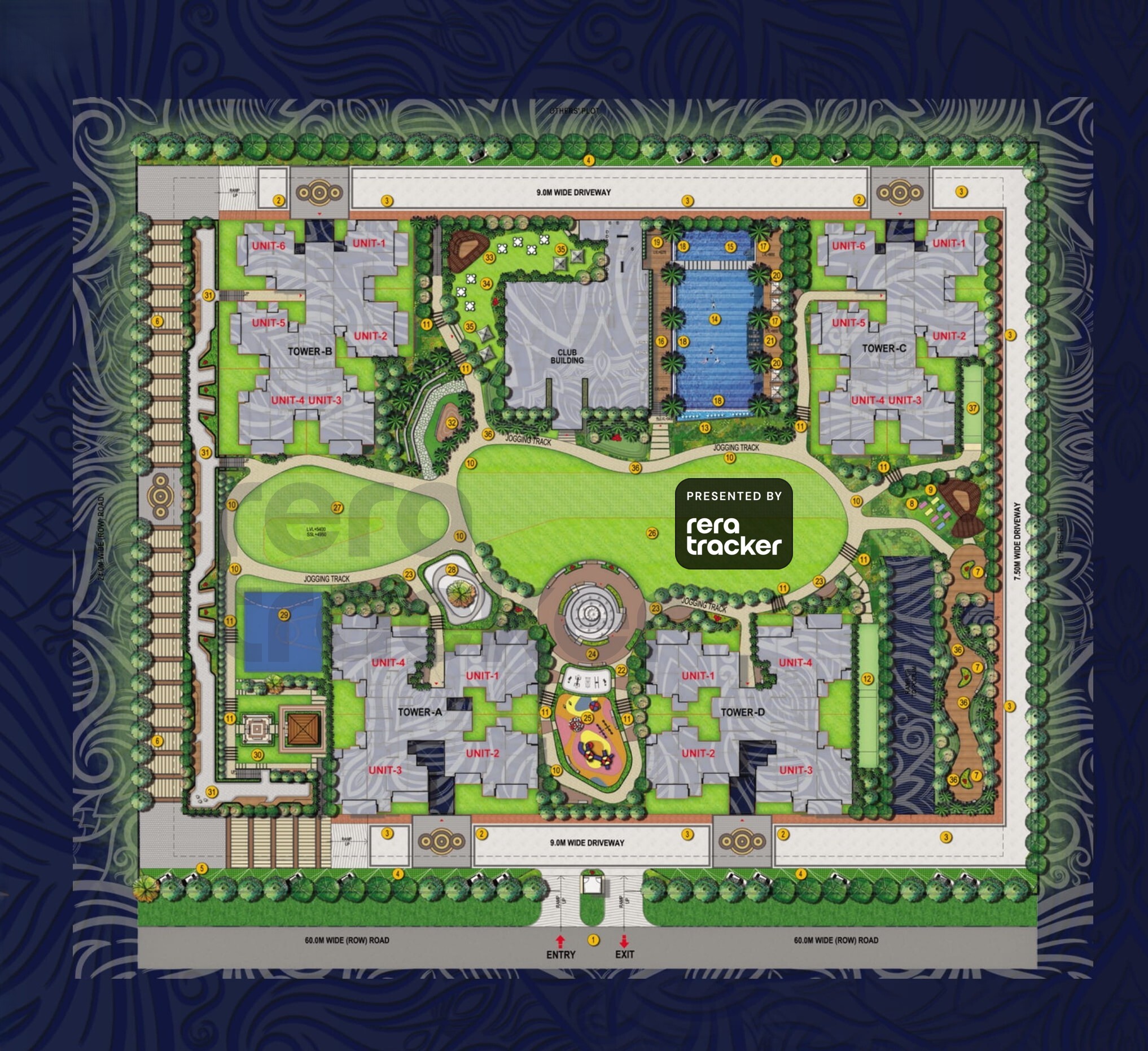

Irish Platinum Layout
Irish Platinum Payment Plans

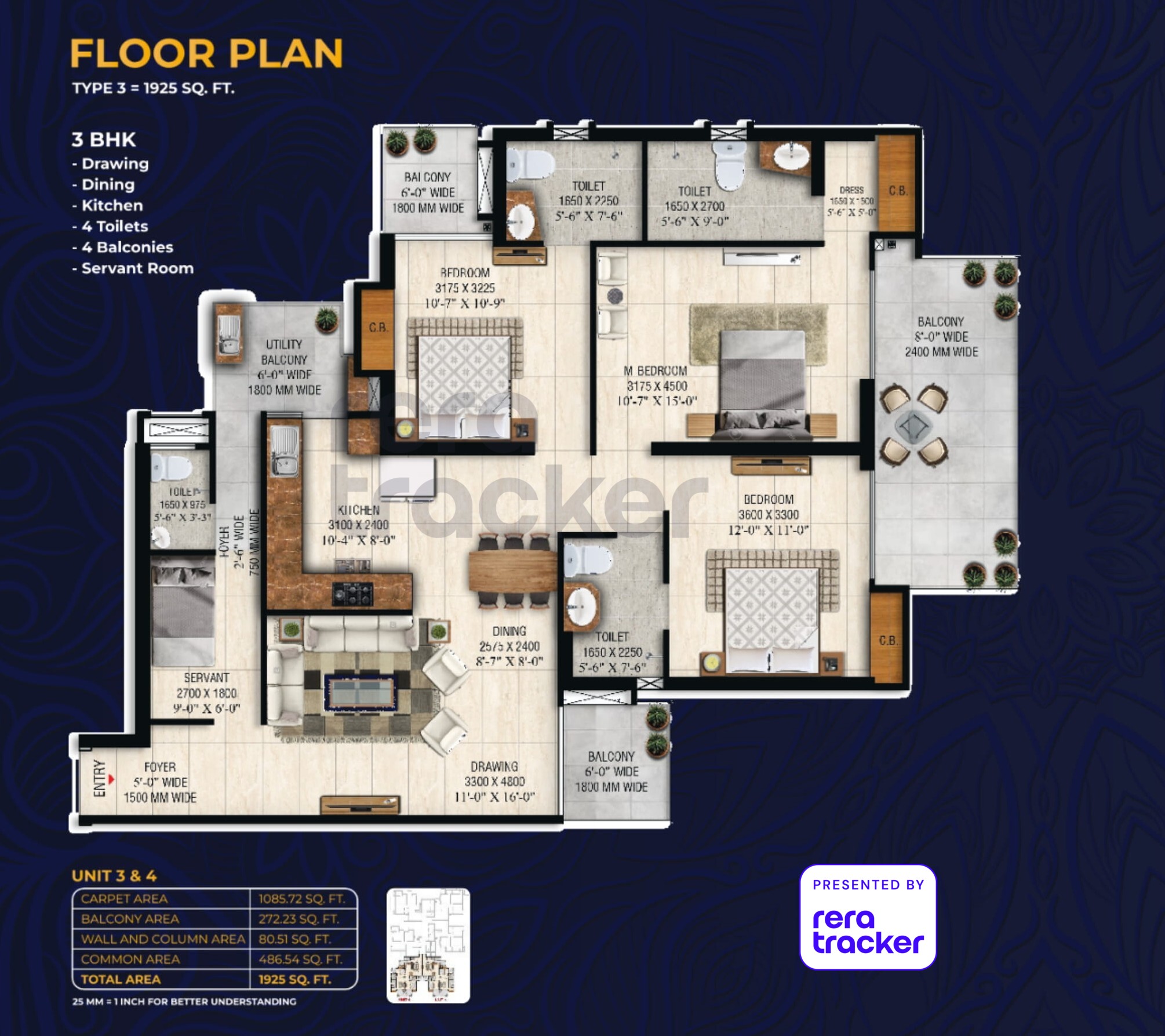

Irish Platinum Floor Plan
BSP only. GST, PLC, Parking, IFMS could be add ons.
Get Full Cost BreakupIrish Platinum Brochures
Irish Platinum Land Details
Showing 5 blocks with 628 units
Property Summary
Total Carpet Area
59340.73 m²
638737.68 ft²
Total Units
598
4 different types
Blocks & Floors
5
34 floors across all blocks
Parking
0
0 garages, 0 open
Block B
179 unitsBlock C
175 unitsBlock D
119 unitsBlock COMMERCIAL
36 unitsBlock A
119 unitsIrish Platinum Documents
Irish Platinum Permits
Irish Platinum Basic Details
Irish Platinum Bank Details
Irish Platinum Khasra Details
Total Area
18819.00 m²
202565.83 ft²
Irish Platinum Project Team
Irish Platinum Development Works
Demarcation of Plots
Demarcation map attached with Lease deed of Plot
Boundary Wall
Boundary wall is proposed to be constructed as per the architectural drawings
Road Work
RCC Trimix road with kerb stone on sides and stone paving in front of towers
Footpaths
All footpath will be constructed as per the architectural site plan and landscape plan
Water Supply Including Drinking Water Facilities
Greater Noida Industrial development Authority pipe line water will be used for Drinking and other basic needs regarding water
Sewer System
RCC hume pipe with mainhole chambers and collection chamber and connection to the Development authority sewer system
Drain
Drain are provided in the entire open area that carries water to 4 rain water harvesting chambers provided at each corner at site
Parks
Parks in the form of open/ green area is provided at the podium level which is 40 percent of plot area i.e 4015 sqmt
Tree Planting
As per MoEFCC Norms no. of trees required 1 hectare /50 trees 1.8819 multiply 50 = 94 trees
Design For Electric Supply Including Street Lighting
Electricity an d street lighting will be developed as per the design provided by the architect and appointed consultant considering site requirement
Community Buildings
Floor area =585.510 sqmt and 2nd floor area 307.292sqmt respectively , which makes the total community area as 892.8 sqmt
Treatment and Disposal System of Sewage and Sullage water
Proposed STP capacity is 240 KLD will be installed for treatment of wastewater. After the treatment of 211 KLD sewage ,169 KLD treated water will be generated which will be entirely used of DG cooling ,horticulture and flushing
Solid Waste Management And Disposal System
Following arrangements will be made at the site in accordance to the solid Waste management rules 2016 a. 60 Percent bio degradable waste b. 30 percent non bio degradable c. 10 percent inert waste The soil waste will be segregated at source and collected to trained employed personals
Water Conservation System
Considering Size of recharge pit size will be 8 mtr long 6 mtr wide and 2 mtr deep so the volume of the single pit will be 96 cum Total recharge will be required = 570.58/ 96=5.94 Nos
Energy Management System Including Use of Renewable Energy
Power requirement of project is 1329 kw 2 transformer of capacity 1575 kva will be provided Source of power will be Noida power company limited 2 Nos. of DG set of total capacity 320 Kva will be provided of power back up
Fire Protection And Fire Safety System
The fire protection system for the building is to be design as per the provisions of NBC 2016 and all the directions of local fire service authority
Social Infrastructure And Other Public Amenities Including Public Health Services
social infrastructural space is provided at stilt and first floor level with areas 297 sqm and 543 sqm respectievly ,which makes the total community area is as 840 sqm
Emergency Evacuation Services
Fire staircase is provided in each of the four towers for emergency evacuation as per the NBC guidelines and 9/ 7.5 m wide wide fire tender path has been provided for the tender movement in case of emergency
Other Miscellaneous Work
All miscellaneous work will be completed before completion
